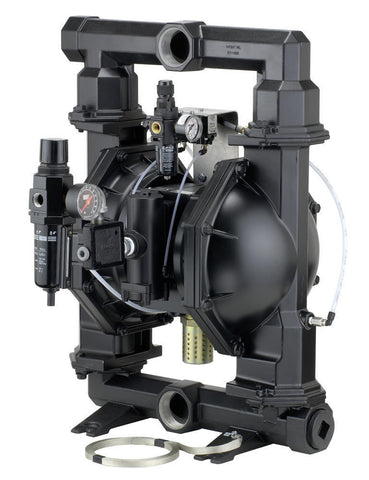

ARO PP20A-AAS-AAA 2" Air Diaphragm Powder Pump

  • $4,122.00


In Stock: 4

 PP20A-AAS-AAA  2" Ported Powder Transfer Diaphragm Pump

100 psi ( 6.9 bar)

Powder Pump Video


  • Transfer and handle your dry process powders quicker, cleaner and at a fraction of the cost associated with installed 'systems'
  • Replaces Manual Powder Processes
  • Reduce Airborne Contamination - With direct transfer from the powder container to your recipe
  • Unique Patented Air-Induction System - Avoids the possibility of powder pack-out
  • Economical and Simple - Unlike large, complex systems
  • Portable - Can be moved from site to site
  • Advanced Air-Induction Technology - 4-Way air efficiency valve, delay timer, pump major air valve, air induction valve, main air control valve and air motor muffler
  • NPT, BSP and Tri-Clamp material connections


  • 66312 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
  • 67183-1 Suction Probe: contains all necessary pump attachment hardware and 10' of groundable hose to be used with both 2"and 3" ported powder pumps
  • 637421 Air Section Service Kit
  • 637309-AA Fluid Section Service Kit

General Description:

  • Inlet/ Outlet: 2 - 11-1/2 N.P.T.F. - 1
  • Fluid Caps & Manifold Material: Aluminum
  • Seat Material: Santoprene
  • Ball Material: Santoprene
  • Diaphragm Material: Santoprene
